Radio broadcasting film studios

Completed installation of radio broadcasting studio and film studio in the school.
Below we describe the equipment and tasks that can be performed in these studios.
Radio broadcasting studio as a school center for managing the broadcast of a music signal indoors and outdoors. In fact, this studio can accommodate three people, two of whom speak into a microphone, and the third plays the synthesizer. This is not the maximum number, it can also accommodate up to 5 people.

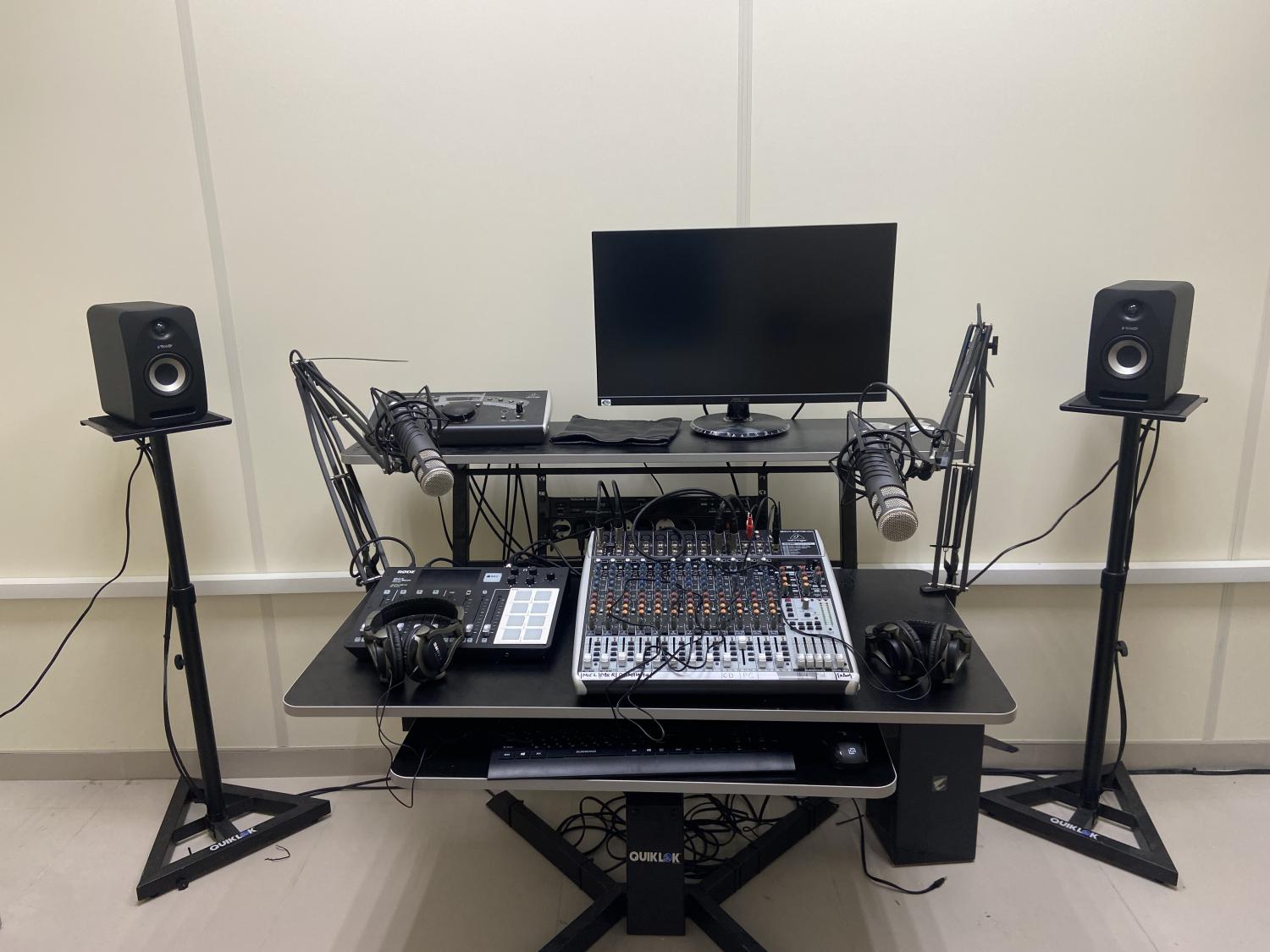

The radio broadcasting studio was equipped with the following equipment:

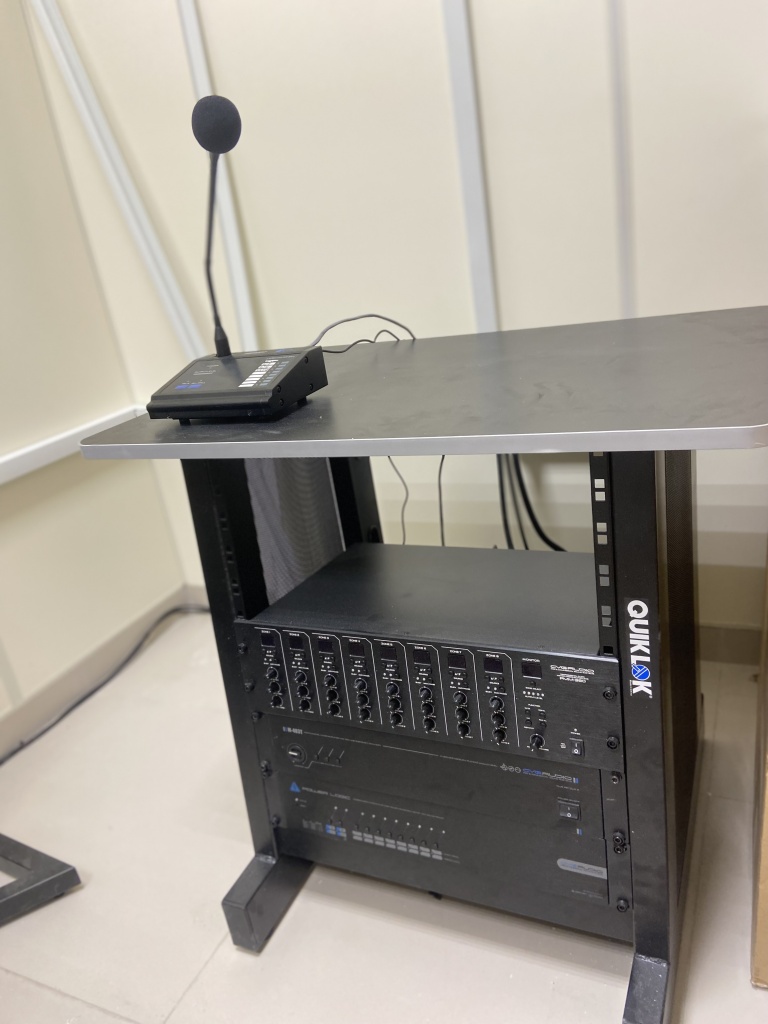

CVGaudio MCP-8 - desktop microphone console
CVGAUDIO PMM-380 - professional sound matrix-preamplifier
CVGAUDIO M-483T - power amplifier
QUIK LOK Z460 - desktop
KORG i3 MB - workstation (synthesizer)
GIGABYTE GB-AMSI9N8I-2051 - computer
ASUS VA27DCP 27" - monitor
RODE Caster Pro - sound card
TASCAM BD-MP1 - multimedia player
Behringer QX2442USB - analog mixer
Behringer CONTROL2USB - studio controller
Shure SRH550DJ - headphones

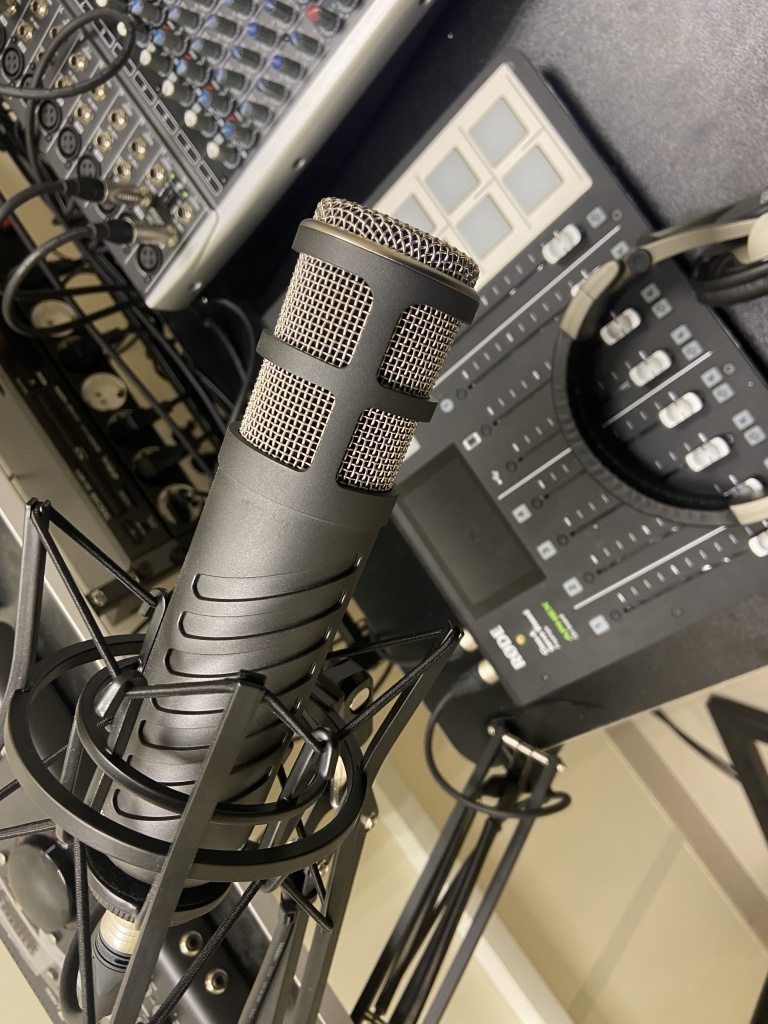

RODE Procaster - cardioid microphone
RODE PSM1 - anti-vibration mount
TANNOY REVEAL 402 - active monitor near field
QUIK LOK Z612BKEU - 12-height rack

This set of equipment will allow you to record short speech announcements for everyday inclusion in the broadcast. It will also allow you to broadcast a dialogue between two interlocutors with the ability to play on a synthesizer, as well as play jingles from the RODE Caster Pro remote control.
Background music from a computer can be played without routing through the remote control.

Horn speakers provided uniform coverage of the area in front of the main entrance to the school, which allows for assemblies and celebrations.

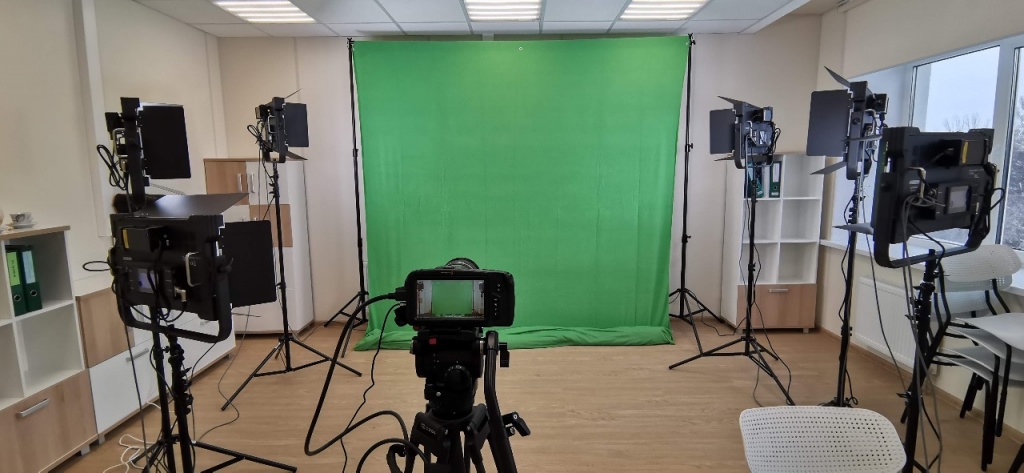

The film studio is located in a separate room, allowing for recording video clips and educational materials for school education.
The chromakey background allows for easy editing of the filmed video material on the server.

The following equipment was used to create the school film studio:
Logovision EPCLV-4200LV - a video workstation with a built-in video console and audio interface.
Logocam GL100-DMX BICOLOR V - studio light
Logocam OZ-5CF2S - tripod kit
Logocam CDA-12/24 - universal analog-digital light control panel
BLACKMAGIC CINECAMPOCHDEF6K - movie camera
Canon EF-S 17-55mm f/2.8 IS USM - lens
Lensgo DOUBLE 338C WITH SIGNAL AMPLIFIER - 2-channel radio microphone
Logocam LS-9/290 - light tripod
Logocam 132 GREEN SCREEN 9 X 20FT WRINKLE RESISTANT BACKDROP - green chromakey background
Micro Converter SDI to HDMI 3G wPSU - micro converter
Falcon Eyes B-8510/H - background installation system
Behringer QX1222USB - analog mixing console
Shure SRH240A-BK-EFS - headphones
With the above equipment, the film studio gets a multifunctional film set with Internet broadcasting (stream).

All technologies in this project were developed by our specialists
