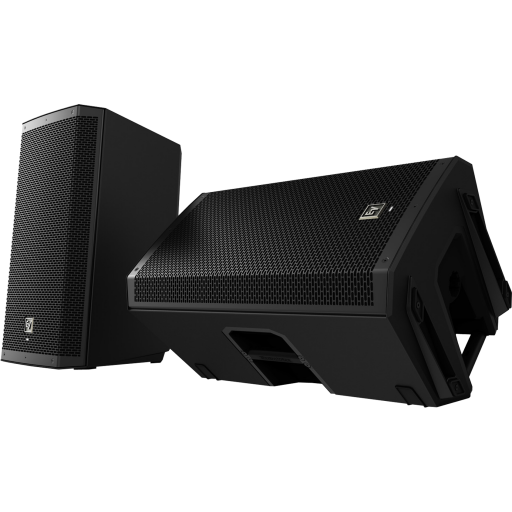

The ZLX series models have an advantage over their competitors due to the introduction of the maximum possible new functions for this segment of acoustic systems. The operation of the latest developments, sound signal control and quick selection of changes in sound characteristics all increase the convenience of working with this acoustics.
When choosing an active acoustic system, the first thing the future user looks at is the description and functionality described in the booklet, then only if possible, it is possible to listen to the acoustic system in a showroom or at a specialized music exhibition. So the ZLX series of the manufacturer Electro-Voice sounded at the distributors' stand in Moscow at the annual exhibition "Music Moscow", which increased interest in choosing this series.

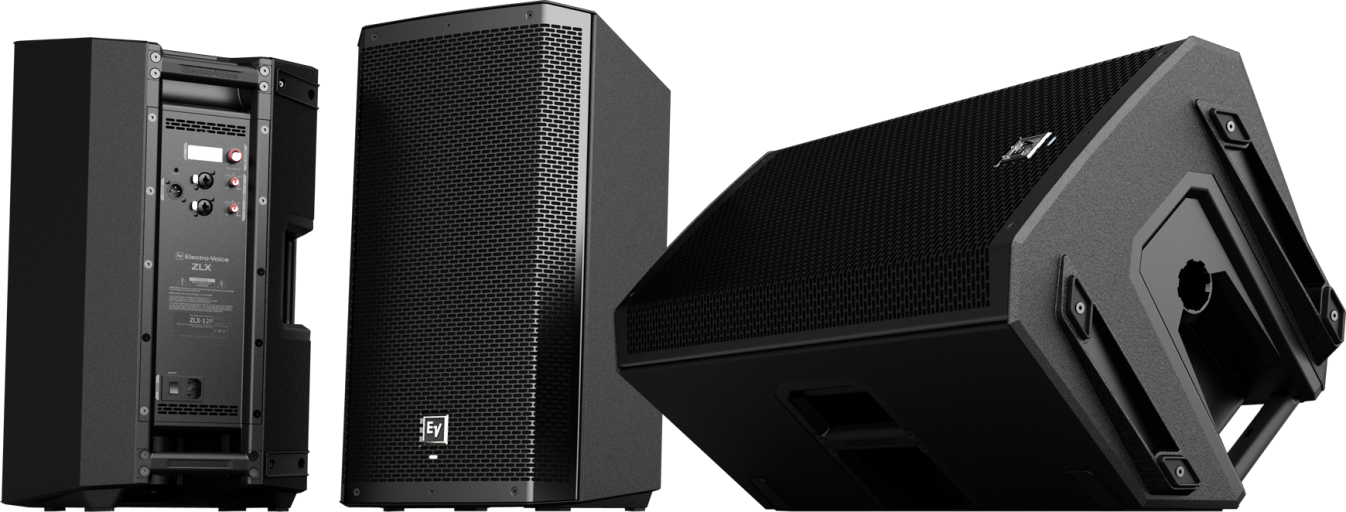

Thanks to the new design, the compactness of the acoustic system and the means for transportation were improved. These sound systems were developed for mobile sound systems, where it is necessary to have a quick connection method, various input connectors, as well as for stationary use, which helps an additional ZLX-BRKT lyre.
The use of active and passive acoustic systems Electro-Voice ZLX can be varied from background sound on the beach or sports ground, to use in a large concert as a stage monitor. A special distinction of the sound of the manufacturer Electro-Voice is the pronounced clear middle of the frequency range, which increases the level of speech intelligibility, and ZLX is used for announcements or rallies.
The body has acquired light weight due to durable plastic and the developed optimal amplifier, in active acoustic systems.

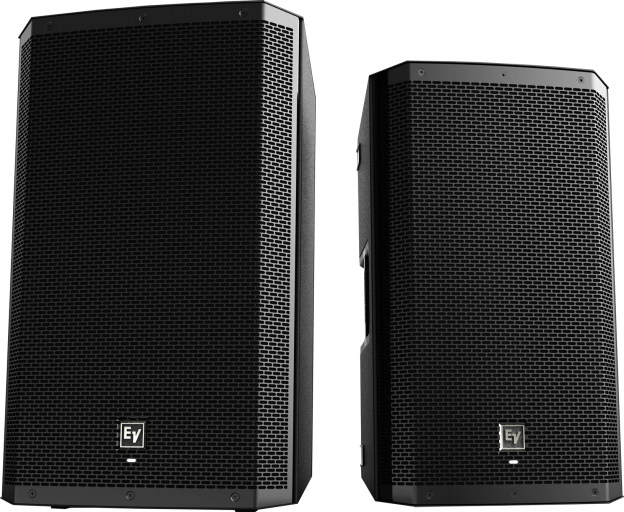

Active acoustic systems Electro-Voice ZLX-12P and ZLX-15P have a built-in DSP processor that allows you to easily change the sound parameters.
Main characteristics of the acoustic systems:
• ZLX-12P: 50 Hz - 20 kHz; 126 dB max. SPL; 1000 W (Class D).
• ZLX-15P: 42 Hz–20 kHz; 127 dB max. SPL; 1000 watts (Class D).
- 12-inch and 15-inch woofers for extended low-end response in a compact, lightweight enclosure, and a titanium diaphragm high-frequency compression driver.
- LCD display and DSP control selector with factory presets for quick and precise system setup.
- Input level meters and separate amp controls for optimum level setting.
- Front LED indicator for power-on and limiter operation. Patented split-face design for superior driver timing.

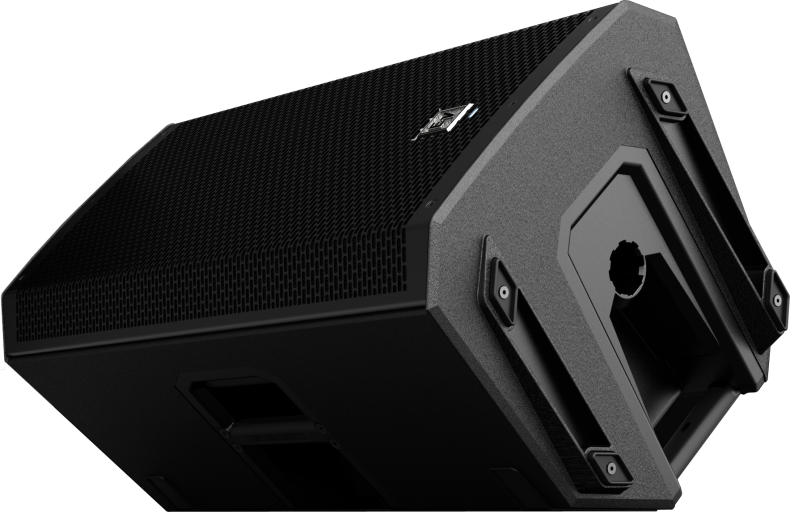

- Durable plastic construction with innovative knob design on top and bottom for easy pole mounting.
- LCD display allows optimum EQ settings for program and placement.
- Innovative industrial design ensures professional sound quality matches the looks.
- Three handles, including two on the top and bottom, make it the most portable professional loudspeaker on the market.
- Composite construction is built to last and withstand rough handling during transport.
- EV delivers best-in-class sound, design, and DSP-based control with LCD, an evolution of the design found in EV's touring-grade products.

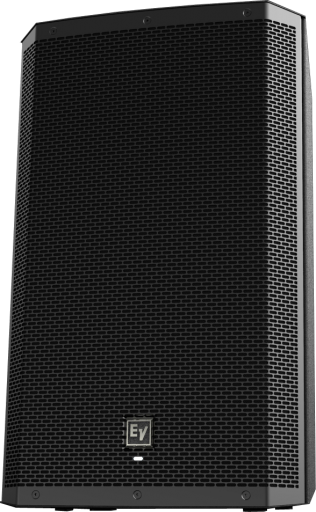

Passive Loudspeakers ZLX-12 - 12-inch Passive Loudspeaker

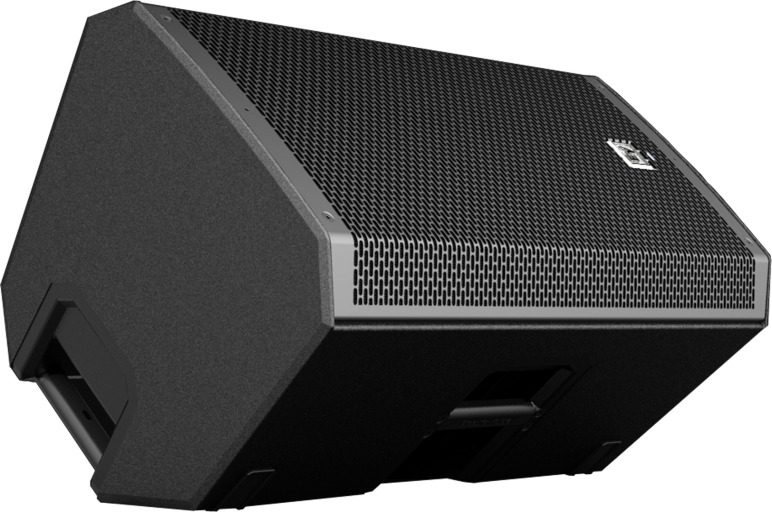

A compact and versatile loudspeaker that uses EV-designed drivers in a rugged enclosure. Mounted on a stand or floor-mounted as a monitor, the ZLX delivers powerful, clear sound -
the legendary "EV Sound" that professionals choose.
- 12-inch woofer for powerful low-end response in a compact cabinet and a titanium diaphragm HF compression driver.
- Composite construction is designed for long life and can withstand rough handling during shipping.
- Exclusive split front panel design for superior driver time alignment.
- Frequency response 55 Hz - 20 kHz.
- Continuous power 250 W, peak - 1000 W.
- Sensitivity 95 dB, max. SPL 125 dB

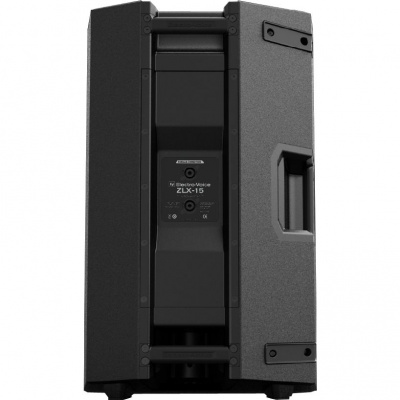

ZLX-15 – 15-inch passive loudspeaker.
- 15-inch woofer for powerful low-end performance in a compact cabinet and a titanium diaphragm HF compression driver.
- Composite construction for long life and to withstand rough handling during shipping.
- Exclusive split baffle design for superior driver time alignment.
- 44 Hz – 20 kHz frequency response.
- 250 watts continuous power, 1000 watts peak.
- 96 dB sensitivity, 126 dB max SPL

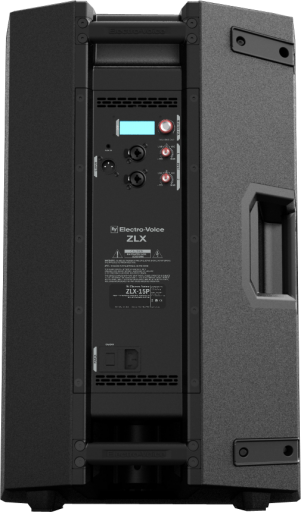

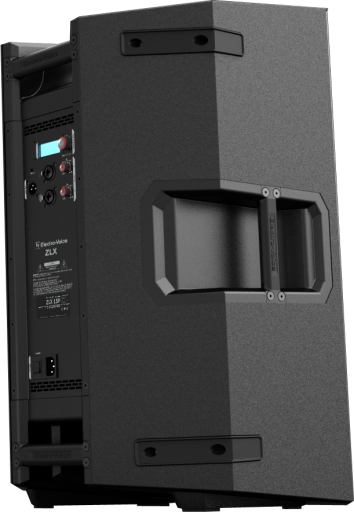

The ZLX amplifier has a variety of controls and connectors for maximum system flexibility.
- LCD-DSP control and monitoring interface.
- MASTER VOL—Turn the knob to the right to increase the volume or to the left to decrease the
volume.
DSP—Press and hold the MASTER VOL knob to enter the DSP settings. Turn the
MASTER VOL knob to cycle through the menu items. Press the MASTER VOL knob again to select a menu item.
- AUX IN—3.5 mm jack input for connecting external audio devices such as MP3 players.
- INPUT LEVEL—Level control knob for adjusting the sensitivity of an individual input. LINE and MIC input level controls are available for both INPUT 1 and INPUT 2.
- LINK OUTPUT—XLR output sends the sum of all input signals to another speaker or subwoofer.
- XLR/TRS INPUT—Balanced input for connecting sources such as mixers, instruments or microphones. Uses ¼" TRS or XLR connectors.
- MAINS IN—connect to AC power via IEC connector. The ZLX amplifier operates on 100V-240V (+-10%) mains voltage.
- POWER—power switch to turn the speaker on and off. LCD screen lights up when POWER is ON
