Behringer X32 - professional mixing console

After years of intensive development, Behringer is proud to offer a mixer that combines enormous performance power and control flexibility with a highly user-friendly layout and intuitive workflow that lets you get started right away.

The Behringer X32 is the fully integrated centerpiece of a digital mixing, audio networking, and processing ecosystem. It combines a workflow-optimized control surface, extensive I/O, and audio signal processing capabilities in a compact desktop form factor. Featuring motorized faders and rotary encoders, as well as a daylight-viewable TFT screen, the control surface is designed to provide immediate access to critical functions with full and automatic recall of settings. Extensive onboard I/O includes 40 A/D and 24 Cirrus Logic A/D converters, 96 bidirectional channels via SuperMAC AES50, stereo AES/EBU output, 16 channels of BEHRINGER Ultranet personal monitoring, and 32 x 32 channels of USB recording.

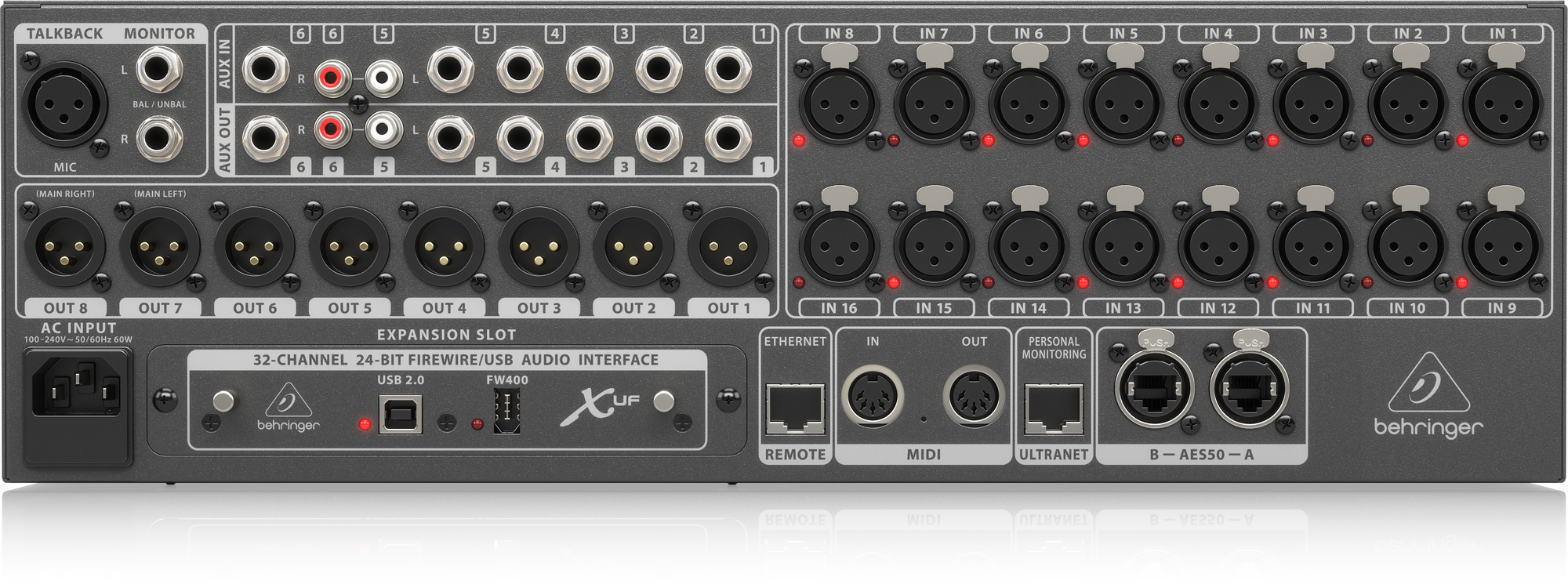

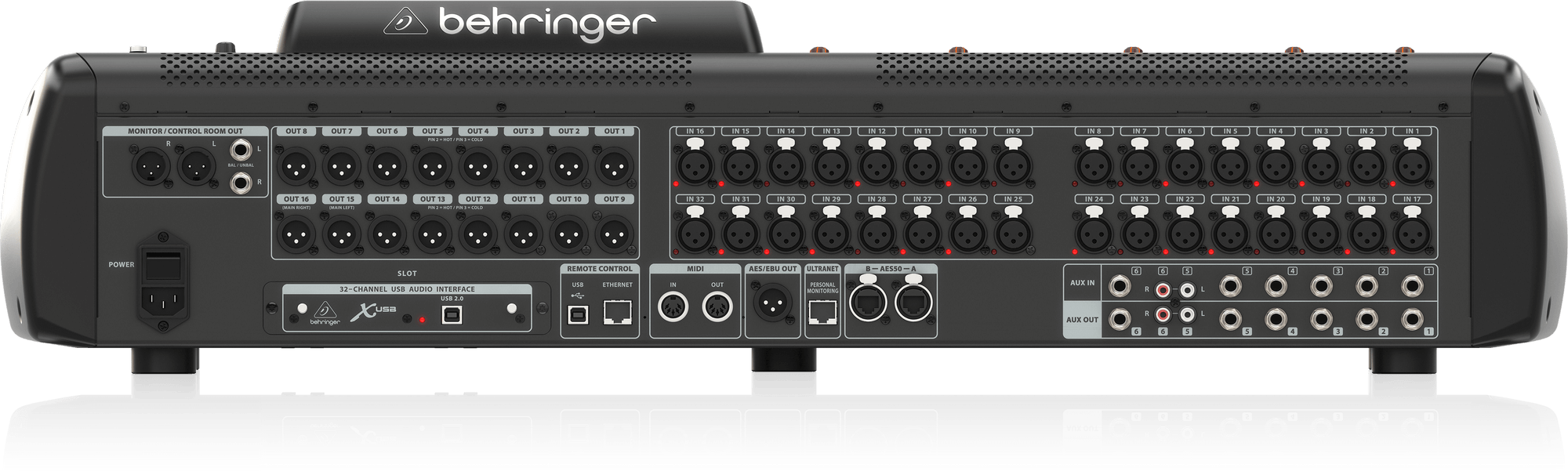

Extensive analog connectivity is provided by 32 digitally controlled microphone preamps designed by world-renowned MIDAS, 6 line-level auxiliary inputs and outputs, 16 XLR outputs, stereo monitoring outputs on XLR/TRS connectors, and outputs for two headphones. Each of the 32 microphone inputs can accept balanced or unbalanced signals at mic or line level and includes switchable phantom power with a gain range of -72 dB and a maximum level of +23 dB before clip. A separate external microphone input and internal talkback microphone allow communication with different artists on stage.

Dual AES50 Ethernet connectors using KLARK TEKNIK SuperMAC technology provide 96 x 96 signal transmission for a total of 168 x 168 available sources and destinations. Motorized faders, recallable mic preamps, programmable routing and the ability to save and recall entire scenes make changing settings or programs quick and easy. A top-panel USB port lets you save system data or record the board's mix directly to external flash memory or hard drives.

The input section features 16 x 100mm motorized faders providing control of channels 1-16, 17-32, Aux inputs/USB playback/FX return. A separate section of 8 motorized faders controls DCA groups 1-8, bus masters 1-8 and 9-16, and matrices 1-6. The main "X-Channel" section allows instant editing of gain, dynamics, EQ and other functions of the currently selected channel. A customizable assignable section allows specific control functions to be assigned directly to a set of dedicated knobs and buttons.

The main 7" wide, high-contrast color display provides information for editing the relevant parameters of the active function or effect. The relevant parameters are quickly recalled to the display for editing using the "view" buttons in each subsection. Each channel also has a small customizable LCD screen for displaying track name, number, color and source image.

The virtual FX rack offers 8 true stereo multi-effects processors (16 mono), and 39 effect models eliminate the need for additional external equipment. 4 high-quality effects such as delay and reverb can work simultaneously with 8 channels of 31-band graphic EQ.

The built-in interface card allows you to transfer up to 32 tracks to and from a computer for recording, mixing and mastering.

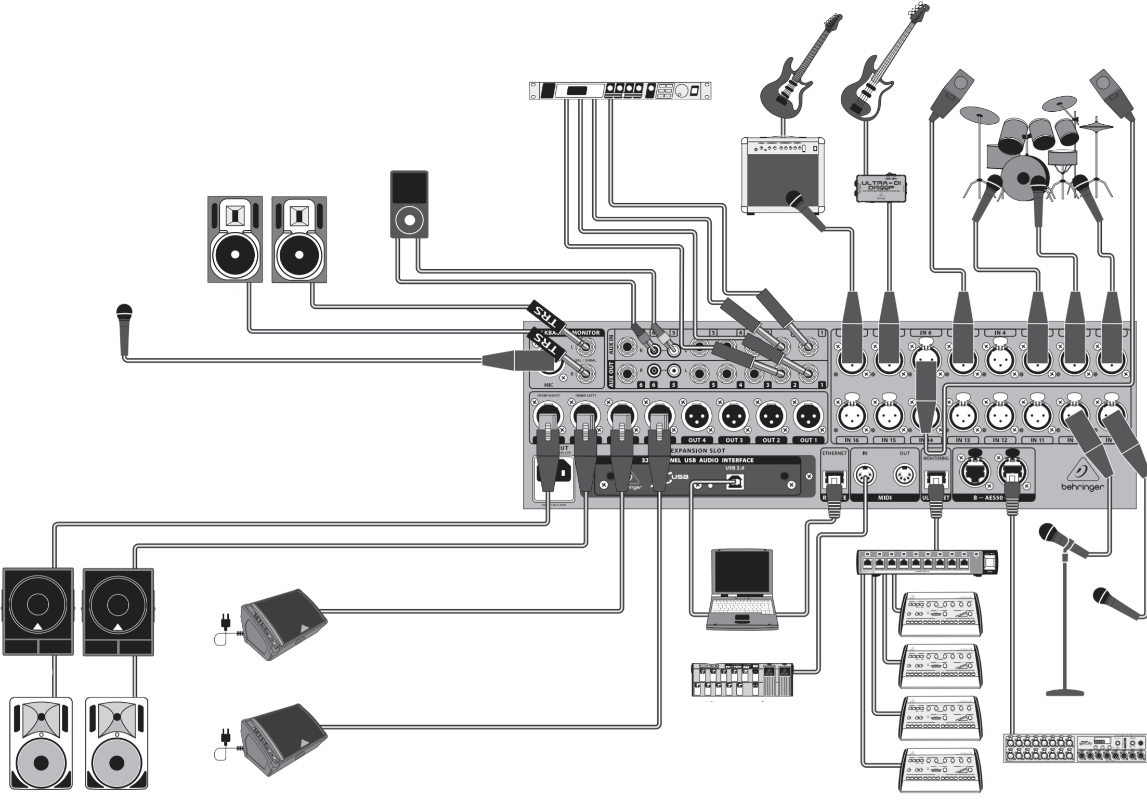

The X32 integrates easily with other X32 consoles, the Behringer S16 digital stage box and the Behringer P-16 personal monitoring system for complete live, studio and installed sound. Remote control of the mixer is possible with the free iPad app or editing and remote control software connected via Ethernet. Ease of use, intuitive workflow, a diverse feature set and integration with other equipment make the Behringer X32 the ideal centerpiece for live sound systems and sound production in studio and film settings.

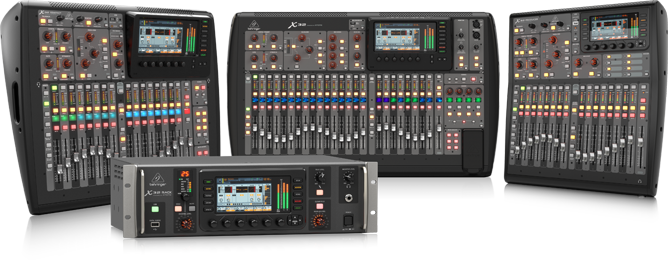

The Behringer X32 family of mixing consoles has different models:

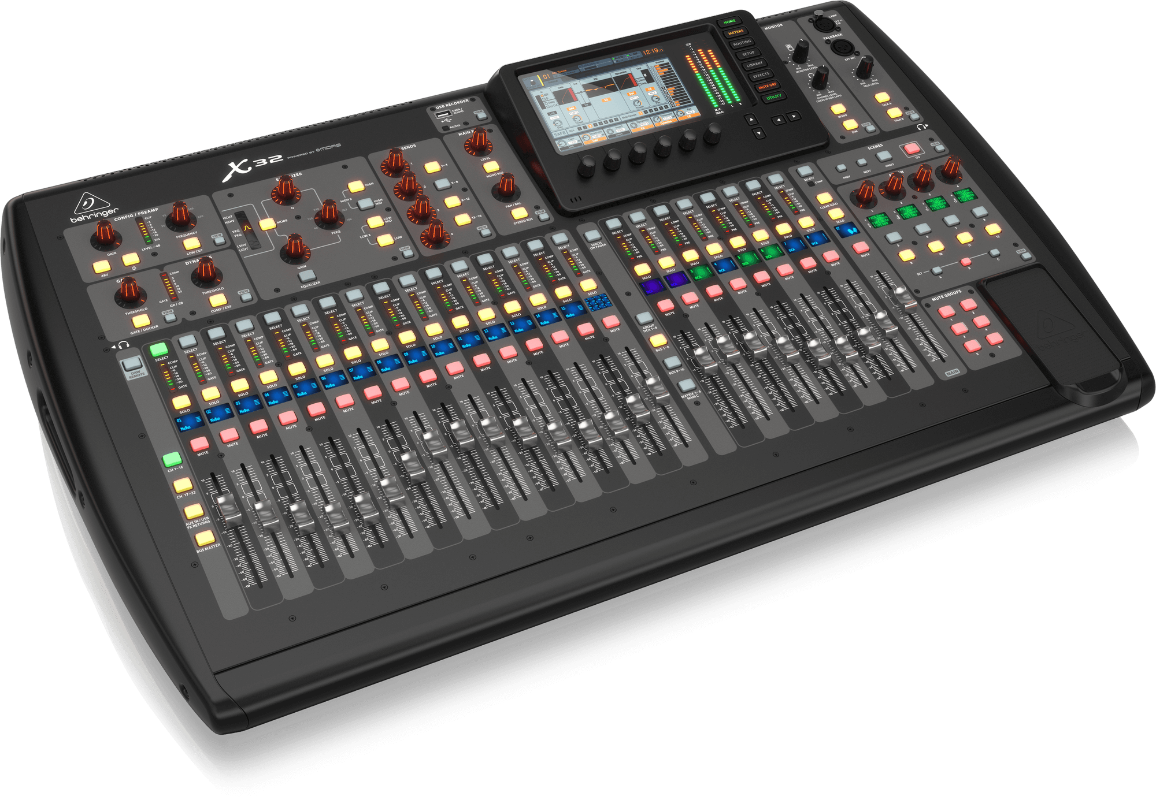

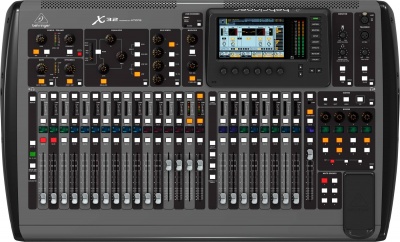

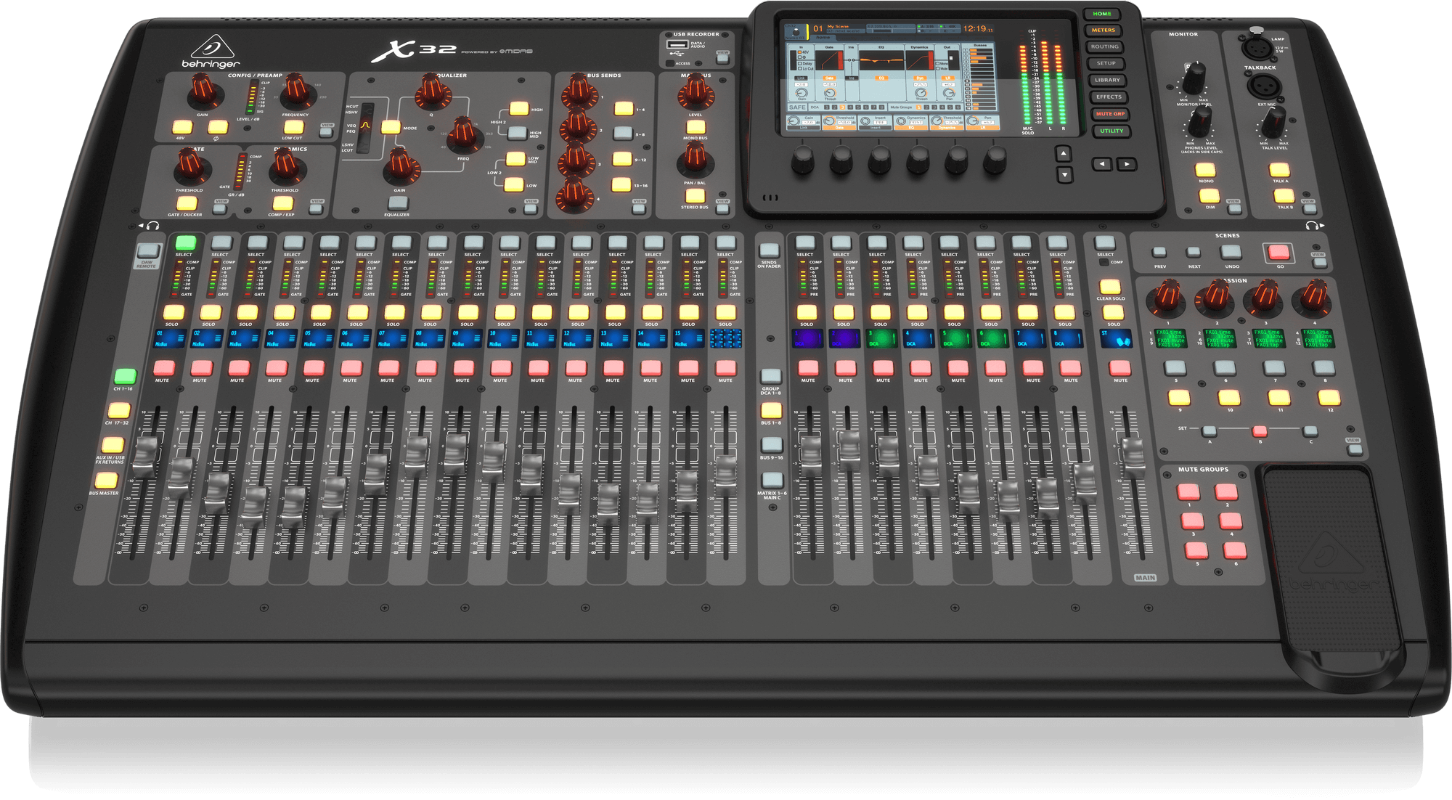

Behringer X32 - a full-size console for tabletop installation with 25 faders

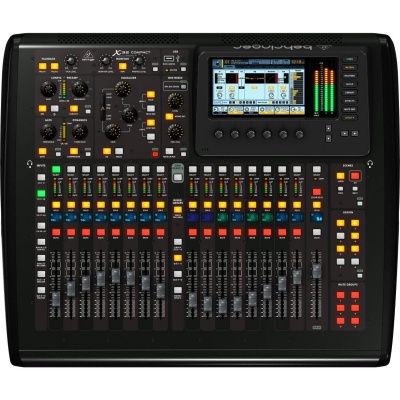

Behringer X32 COMPACT - a compact tabletop console with 17 physical faders;

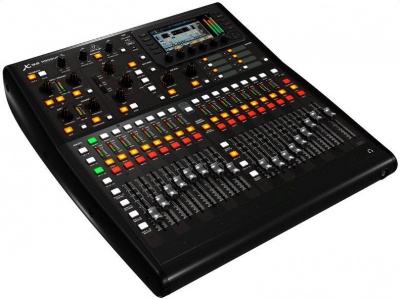

Behringer X32 PRODUCER - a compact tabletop console with 17 physical faders;

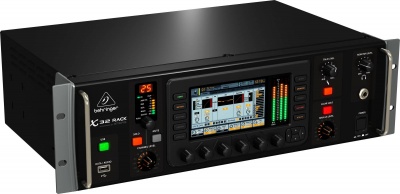

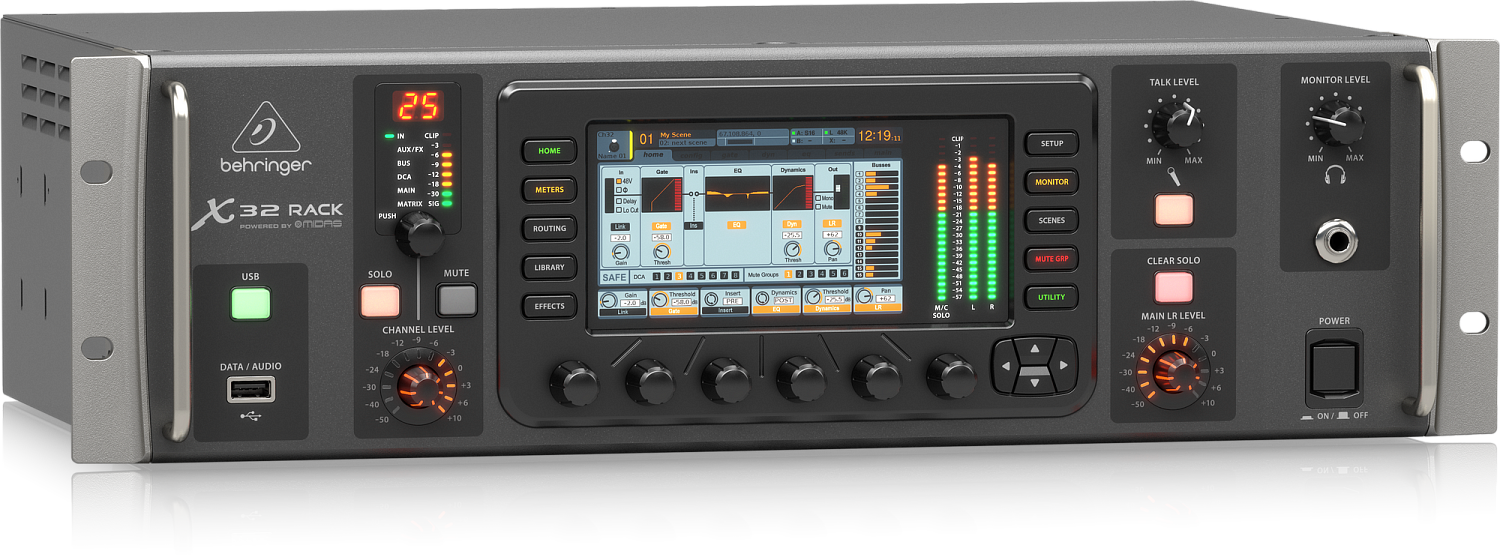

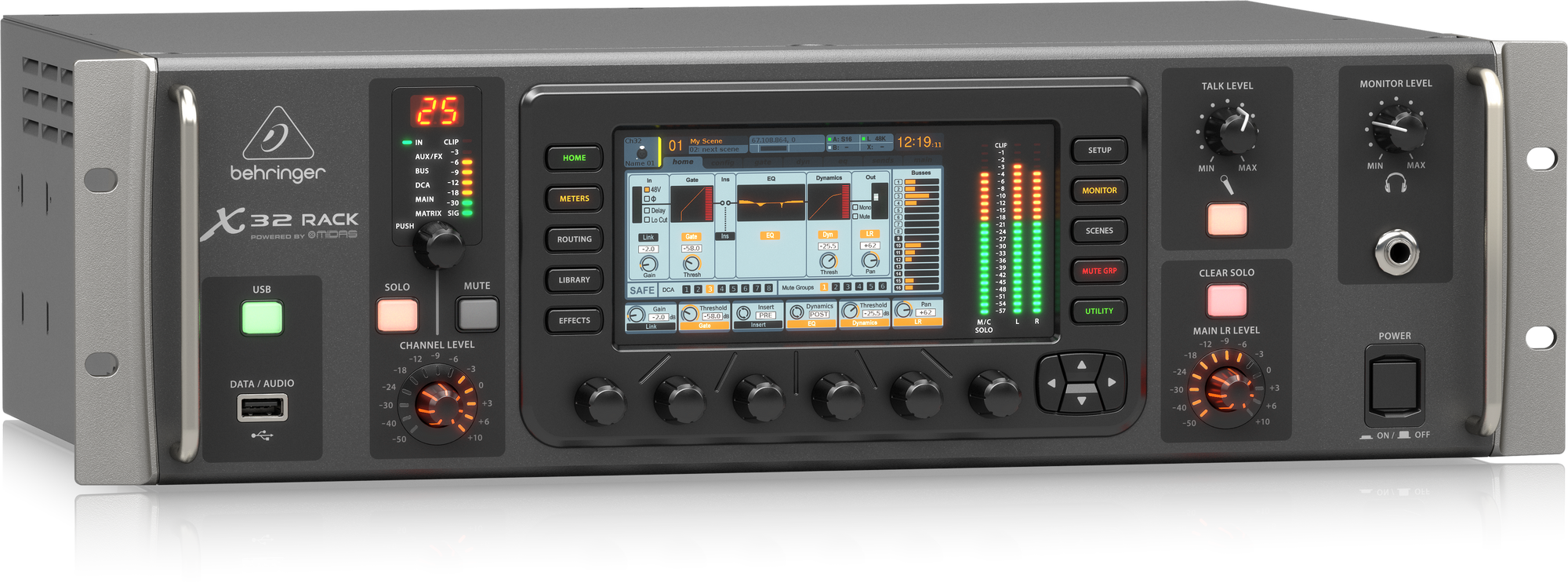

Behringer X32 RACK - a compact rack format allows you to install a rack or case

We recommend that you check the Behringer X32 for operability, choose the optimal type of mixing console for your tasks.
