BSS BLU101 Feedback Suppressor Audio Matrix
27 ноября 2024 0:00
// Звуковое оборудование
BSS BLU101 audio matrix 12 analog mic/line inputs, 8 analog outputs, 12 independent AEC algorithms. DSP processor Soundwe
Professional sound processor with automatic feedback suppressor BSS BLU-101 is a high-power, intelligent sound matrix, the filling consists of many elements of sound signal control. BSS BLU-101 can be installed in the sound path as the main element of control and distribution of the sound signal.
This processor has proven itself in our projects on voicing Temples.
With the help of software, it is possible to build your own signal processing structure, which allows you to have a full-fledged control panel for sound signals.
The feedback function is very helpful in rooms with very high reverberation time, choosing the BSS BLU-101 processor, we were able to achieve high-quality sound without unnecessary overtones.
Audio matrix 12 analog mic / line inputs 8 analog outputs. DSP processor Soundweb London, 12 independent AEC algorithms. SPECIFICATIONS:

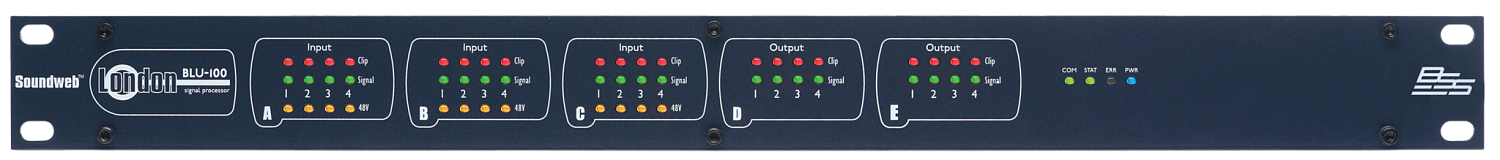

Front Panel LED Indicators:
PerInput: Signal Present, CLIP, 48V (input only)
Other: COM, STAT, ERR, PWR
Analog Inputs: 12 electronically on balanced PhoenixCombicon removable screw terminals
Mic/Line Inputs: Nominal gain 0dB, electronically switchable to +48dB, in +6dB steps
Input Impedance: 3.5kΩ
Maximum Input Level: +20dBu with 0dB input gain, +8 dBu with 12dB gain
CMRR: >75dB at 1kHz
Input Noise (E.I.N.):
Phantom Power: 48V nominal, selectable for each input
A/D Latency: 37 / Fs [0.77ms@48k]
Analog Outputs: 8 electronically on balanced Phoenix/Combicon removable screw terminals
Maximum Output Level: +19dBu
Frequency Response: 20Hz-20kHz (+0.5dB/-1dB)
THD: <0.01% from 20Hz to 20kHz, +10dBu output
Dynamic Range: 108dB typical, 22Hz-22kHz unweighted
Output Impedance: 40Ω balanced and 20Ω unbalanced
D/A Delay: 29 / Fs [0.60ms@48k>]
Control Ports: 12 inputs and 6 outputs
Input Voltage Control: 0 to 4.5V
Input Impedance Control: 4.7kΩ to + 5V (2-wire mode), >1 Mohm (3-wire mode)
Logic Output Voltage: 0 or +5V
Logic Output Impedance: 440Ω
Logic Output Current: 10mA source, 60mA sink
Output: Phoenix / Combicon connector for fail-safe control
Output Current: Max 14mA
Withstand Voltage: 80V maximum (Off)
Impedance: 220Ω (isolated)
Network Management:
Connectors: RJ45 Ethernet connector
Maximum Cable Length: 100m / 300ft on Category 5e cable between device and Ethernet switch
Connectors: 2 x RJ45 LAN connectors
Maximum Cable Length: 100m / 300ft on Category 5e cable between devices
Max. Number of Nodes: 60
Latency: 11 / Fs [0.23ms@48k]
End-to-end Latency: 4 / Fs [0.08ms@48k]
Power and Dimensions:
Line Voltage: 100-240VAC, 50/60Hz
Power Consumption: <55VA
BTU Rating:
Temperature Operating Range: 15 - 35 Degrees Celsius
Dimensions: (H x W x D): 45mm x 483mm x 229mm
Weight: 2.9kg.
This processor has proven itself in our projects on voicing Temples.
With the help of software, it is possible to build your own signal processing structure, which allows you to have a full-fledged control panel for sound signals.
The feedback function is very helpful in rooms with very high reverberation time, choosing the BSS BLU-101 processor, we were able to achieve high-quality sound without unnecessary overtones.
Audio matrix 12 analog mic / line inputs 8 analog outputs. DSP processor Soundweb London, 12 independent AEC algorithms. SPECIFICATIONS:
Front Panel LED Indicators:
PerInput: Signal Present, CLIP, 48V (input only)
Other: COM, STAT, ERR, PWR
Analog Inputs: 12 electronically on balanced PhoenixCombicon removable screw terminals
Mic/Line Inputs: Nominal gain 0dB, electronically switchable to +48dB, in +6dB steps
Input Impedance: 3.5kΩ
Maximum Input Level: +20dBu with 0dB input gain, +8 dBu with 12dB gain
CMRR: >75dB at 1kHz
Input Noise (E.I.N.):
Phantom Power: 48V nominal, selectable for each input
A/D Latency: 37 / Fs [0.77ms@48k]
Analog Outputs: 8 electronically on balanced Phoenix/Combicon removable screw terminals
Maximum Output Level: +19dBu
Frequency Response: 20Hz-20kHz (+0.5dB/-1dB)
THD: <0.01% from 20Hz to 20kHz, +10dBu output
Dynamic Range: 108dB typical, 22Hz-22kHz unweighted
Output Impedance: 40Ω balanced and 20Ω unbalanced
D/A Delay: 29 / Fs [0.60ms@48k>]
Control Ports: 12 inputs and 6 outputs
Input Voltage Control: 0 to 4.5V
Input Impedance Control: 4.7kΩ to + 5V (2-wire mode), >1 Mohm (3-wire mode)
Logic Output Voltage: 0 or +5V
Logic Output Impedance: 440Ω
Logic Output Current: 10mA source, 60mA sink
Output: Phoenix / Combicon connector for fail-safe control
Output Current: Max 14mA
Withstand Voltage: 80V maximum (Off)
Impedance: 220Ω (isolated)
Network Management:
Connectors: RJ45 Ethernet connector
Maximum Cable Length: 100m / 300ft on Category 5e cable between device and Ethernet switch
Connectors: 2 x RJ45 LAN connectors
Maximum Cable Length: 100m / 300ft on Category 5e cable between devices
Max. Number of Nodes: 60
Latency: 11 / Fs [0.23ms@48k]
End-to-end Latency: 4 / Fs [0.08ms@48k]
Power and Dimensions:
Line Voltage: 100-240VAC, 50/60Hz
Power Consumption: <55VA
BTU Rating:
Temperature Operating Range: 15 - 35 Degrees Celsius
Dimensions: (H x W x D): 45mm x 483mm x 229mm
Weight: 2.9kg.
